StreamPoint ®
Typically installed in these Markets:
- Encoder for expanding available inputs for existing video walls
- Integrates with PixelNet, Catalyst and Canvas
Typically installed in these Markets:
- Encoder for expanding available inputs for existing video walls
- Integrates with PixelNet, Catalyst and Canvas
StreamPoint Encoders
Easily stream video and audio data from any remote location on an IP network in brilliant 4K or HD.
4K or 1080p Display Resolution
Stream, process and record on all four 4K channels simultaneously, in multiple settings, without sacrificing quality.
Easily integrates with PixelNet, Catalyst, Canvas and other display wall products
StreamPoint Components
StreamPoint HD or 4K Single Channel
Easily stream video and audio data from any remote location on an IP network in brilliant HD.
- HD 1080p or 4K display resolution
- Stream over IP network
- Integrates with all other Jupiter processors
| STREAMPOINT HD | STREAMPOINT 4KSCA | STREAMPOINT 4KSCH | |
|---|---|---|---|
| Inputs | |||
| Video Input Interface | 1x HDMI with digital L-PCM audio DVI via DVI-to-HDMI adapter | 1x HDMI® 2.0 (Type A) with audio support | 1x HDMI® 2.0 (Type A) with audio support |
| Video Output/ Pass-Through Interface | HDMI with digital L-PCM audio, local pass-through w/o scaling, or confidence preview w/ optional scaling DVI via HDMI to DVI-D adapter, local pass-through w/o scaling or confidence preview w/ optional scaling HD15, Analog VGA – confidence previewProcamp control: contrast, brightness, saturation, hue Scaled output (i.e., 1080p60 input/720p60 scaled output) w/ optional scaling Resolutions up to 1920x1080p60, 1920x1200(60Hz), 1920x1080i50, 1920x1080i60" | 1x HDMI® 2.0 (Type A) with audio support | 1x HDMI® 2.0 (Type A) with audio support |
| Audio Line-In | 3.5mm analog stereo audio | 1x 3.5 mm analog stereo audio in - 0.57 Vrms -29 kΩ -6 dB to +16.5 dB | 1x 3.5 mm analog stereo audio in - 0.57 Vrms -29 kΩ -6 dB to +16.5 dB |
| Audio Line-Out | 3.5mm analog stereo audio | 1x HDMI digital LPCM two-channel stereo audio | 1x HDMI digital LPCM two-channel stereo audio |
| Network | RJ45 | RJ45 | RJ45 |
| Video Encoding | |||
| Resolution | Single-Channel HD Up to 1920x1080p60 and 1920x1200(56Hz) and many more wide-screen and standard-definition resolutions | Maximum Capture Resolution 1x 3840x2160 @60Hz Color Space Capture: • RGB and YUV 8-bit support • Color space conversion support | Maximum Capture Resolution 1x 3840x2160 @60Hz Color Space Capture: • RGB and YUV 8-bit support • Color space conversion support |
| Codec | H.264/MPEG-4 Part 10 (AVC) | H.264/MPEG-4 Part 10 (AVC) Chroma Sub-Sampling • 4:2:0 (8-bit) | H.264/MPEG-4 Part 10 (AVC) H.265/MPEG-H Part 2 (HEVC) Chroma Sub-Sampling • 4:2:0 (8-bit) |
| Profiles | Main | Baseline (BP), Main (MP), High (HiP), High10 (Hi10P), Intra, up to Level 5.2 | Main (MP), Main Intra, Main10, Main10 Intra, Main, Intra up to Level 5.1 High Tier |
| Levels | Up to 4.2 | Up to 5.2 | Up to 5.2 |
| Bit Rates | 100 Kbps to 25 Mbps | 64Kbps to 60 Mbps 15 Mbps (default) | 64Kbps to 60 Mbps 15 Mbps (default) |
| Rate Control | CBR, VBR, Favor Speed, Favor Quality, Adjustable GOP Size | CBR, VBR, adjustable GOP size | CBR, VBR, adjustable GOP size |
| Audio Encoding | |||
| Codec | MPEG4 AAC-LC | MPEG-4 AAC-LC, OPUS and LPCM | MPEG-4 AAC-LC, OPUS and LPCM |
| Channels | 2 channel (stereo), HDMI with digital L-PCM audio | 2 channel (stereo), HDMI with digital L-PCM audio | 2 channel (stereo), HDMI with digital L-PCM audio |
| Analog Frequency | 32 kHz, 44.1 kHz, and 48 kHz | 32 kHz, 44.1 kHz, and 48 kHz | 32 kHz, 44.1 kHz, and 48 kHz |
| Bit Rates | 96, 128, 192, and 256 Kbps | From 64 to 320 Kb/s (AAC-LC, OPUS and LPCM) | From 64 to 320 Kb/s (AAC-LC, OPUS and LPCM) |
StreamPoint 4K Dual or Quad Channel
Easily stream video and audio data from any remote location on an IP network in brilliant 4K.
- Available as: dual 4K-2 or quad 4K-4 models
- Stream over IP network
- Input node supports up to 4 concurrent 4k streams
- Integrates with all other Jupiter processors
| STREAMPOINT 4K-2 | STREAMPOINT 4K4 | |
|---|---|---|
| Inputs | ||
| Video Input Interface | 2x HDMI® (Type A) with audio support | 4x HDMI® (Type A) with audio support |
| Video Output/ Pass-Through Interface | 2x HDMI® (Type A) with audio support | 4x HDMI® (Type A) with audio support |
| Audio Line-In | 2x 3.5 mm analog stereo audio - 1 Vrms (0 dBV) - 14.3 kΩ (gain = 0 dB) - (-60) dB to (+6) dB (default is 0 dB) 1x 3.5 mm stereo mic in - 2.5 V - 1 Vrms (0 dBV) - 15 kΩ (gain = 0 dB), 5 kΩ (gain≥ 10 dB) - (-74) dB to (+41) dB (default is 0 dB) | 4x 3.5 mm analog stereo audio - 1 Vrms (0 dBV) - 14.3 kΩ (gain = 0 dB) - (-60) dB to (+6) dB (default is 0 dB) 1x 3.5 mm stereo mic in - 2.5 V - 1 Vrms (0 dBV) - 15 kΩ (gain = 0 dB), 5 kΩ (gain≥ 10 dB) - (-74) dB to (+41) dB (default is 0 dB) |
| Audio Line-Out | 2x HDMI digital LPCM two-channel stereo audio 1x 3.5 mm headphones out - 1.2 Vrms (1.6 dBV) - 32 mW into 32Ω - (-74) dB to 0 dB (default is 0 dB) | 4x HDMI digital LPCM two-channel stereo audio 1x 3.5 mm headphones out - 1.2 Vrms (1.6 dBV) - 32 mW into 32Ω - (-74) dB to 0 dB (default is 0 dB) |
| Network | RJ45 | RJ45 |
| Video Encoding | ||
| Resolution | Maximum Capture Resolution • 2x 3840x2160 @60Hz or 2x 4096x2160 @60Hz Color Space Capture • RGB and YUV 8- and 10-bit support • Color space conversion support | Maximum Capture Resolution • 4x 3840x2160 @60Hz or 4x 4096x2160 @60Hz Color Space Capture: • RGB and YUV 8- and 10-bit support • Color space conversion support |
| Codec | H.264/MPEG-4 Part 10 (AVC) Chroma Sub-Sampling • 4:0:0, 4:2:0 (8-bit and 10-bit) • 4:2:2 (8-bit), 4:4:4 (8-bit) | H.264/MPEG-4 Part 10 (AVC) Chroma Sub-Sampling • 4:0:0, 4:2:0 (8-bit and 10-bit) • 4:2:2 (8-bit), 4:4:4 (8-bit) |
| Profiles | Baseline (BP), main (MP), high (HiP), high 10 (Hi10P), high 4:2:2 (Hi422P), high 4:4:4 predictive profile separate plane (Hi444PP), CAVLC 4:4:4 intra (44) | Baseline (BP), main (MP), high (HiP), high 10 (Hi10P), high 4:2:2 (Hi422P), high 4:4:4 predictive profile separate plane (Hi444PP), CAVLC 4:4:4 intra (44) |
| Levels | Up to 5.2 | Up to 5.2 |
| Bit Rates | 50 Kpbs to 120 Mbps 15 Mbps (default) | 50 Kpbs to 120 Mbps 15 Mbps (default) |
| Rate Control | CBR, VBR, adjustable GOP size | CBR, VBR, adjustable GOP size |
| Audio Encoding | ||
| Codec | MPEG-4 AAC-LC/HEv1/HEv2 | MPEG-4 AAC-LC/HEv1/HEv2 |
| Channels | 2 channel (stereo), HDMI with digital L-PCM audio | 2 channel (stereo), HDMI with digital L-PCM audio |
| Analog Frequency | 32 kHz, 44.1 kHz, and 48 kHz | 32 kHz, 44.1 kHz, and 48 kHz |
| Bit Rates | Up to 576 Kbps (AAC-LC), 288 Kbps (AAC-HEv1), 144 Kbps (AAC-HEv2) | Up to 576 Kbps (AAC-LC), 288 Kbps (AAC-HEv1), 144 Kbps (AAC-HEv2) |

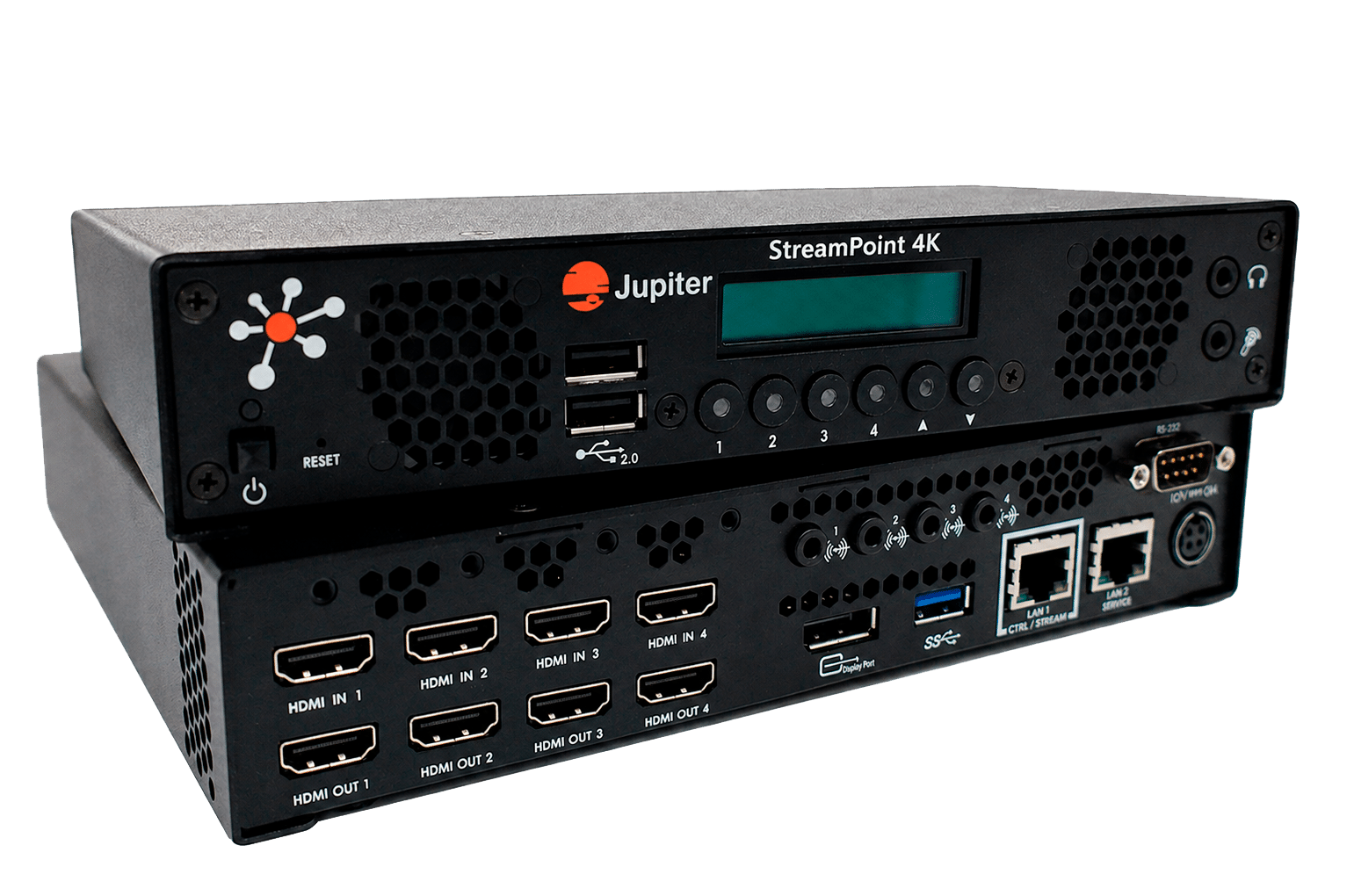

StreamPoint 4K
StreamPoint 4K is the first encoder in the world to deliver quad 4K input capturing, encoding while simultaneously recording 4 concurrent 4K streams. Built on H.264, StreamPoint 4K fits seamlessly into your existing infrastructure and operates with virtually any network device for high-density content distribution and system scalability. And flexible setup and management from an easy-to-use StreamPoint software interface and a convenient rack-ready form.

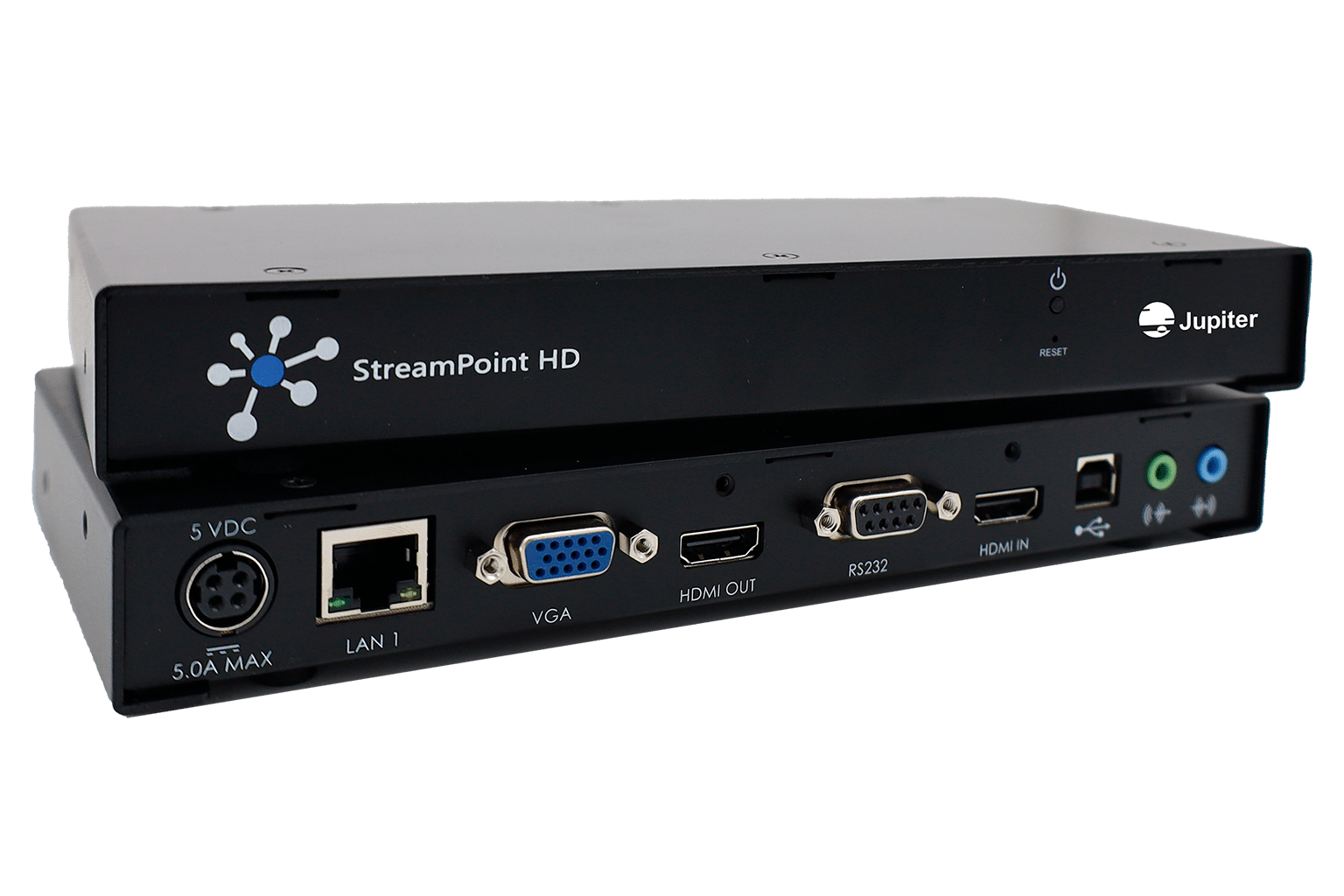

StreamPoint HD
With StreamPoint HD, extend or record up to 1080p video and audio over a standard IP network at user-defined low bit rates for excellent quality and minimal network bandwidth consumption. StreamPoint HD streams or records high-quality video and audio to any devices that uses the H.264 video compression and can record to a shared network or NAS drive.
StreamPoint Software
All StreamPoint devices come preloaded with StreamPoint software enabling flexible management of local or remote data for a complete reach and control over the entire network. StreamPoint software allows users to remotely discover, manage and adjust their network, define multiple stream parameters and balance network bandwidth consumption and quality.
