J-Series Processor
Easy and affordable video wall hardware
- Resolutions up to 4K
- Multiple walls in a single chassis
- Warp and blend processing boards
J-Series processors are an I/O appliance that can be used for any video wall application
LightSpeed, the core technology that makes the J-Series products usable in any deployment
J-Series are built and assembled in an ISO 9001:2015 production floor to uphold best-in-class standards.

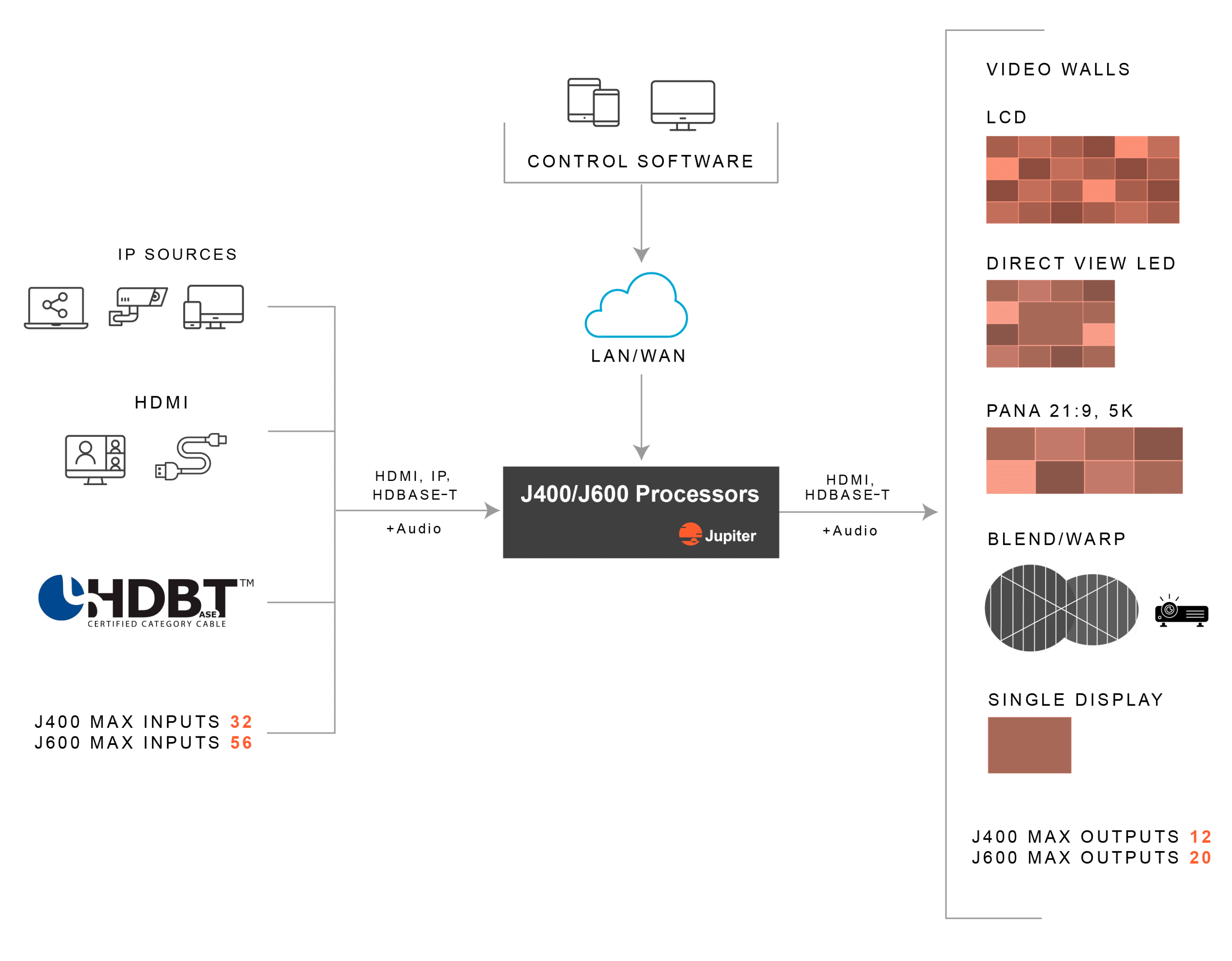

Architecture of a J-Series Installation

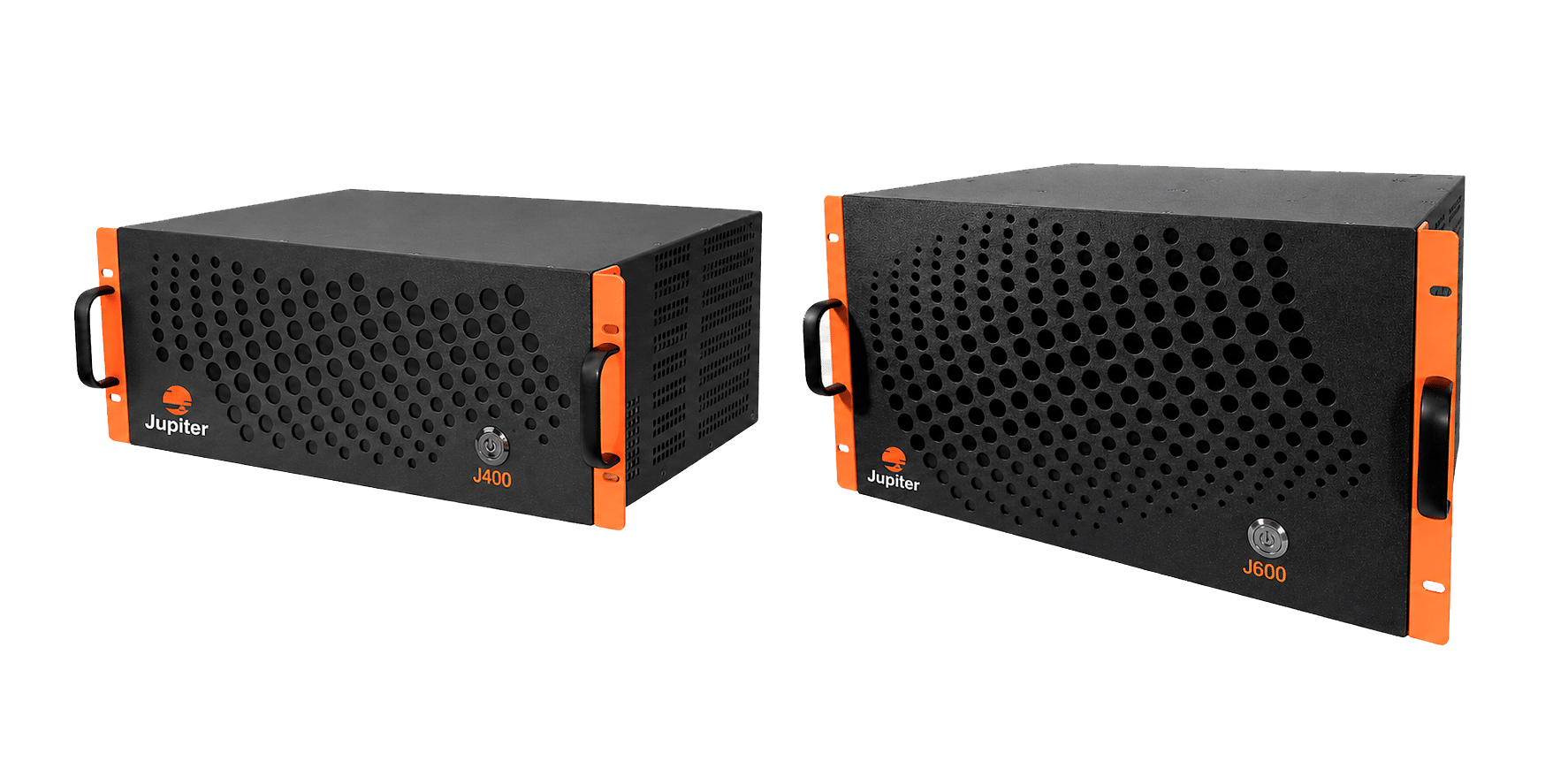

J-Series range
J100™ Models (Discontinued)
Compact video wall processors
- 3 models with up to 8 inputs and 8 outputs
- 8 windows per display
- Windows based user interface
| J144 | J148 | J188 | |
|---|---|---|---|
| Specifications | |||
| Form Factor | 1 RU | 1 RU | 1 RU |
| Max Input Channels | 4 (FHD) | 4 (FHD) | 8 (FHD) |
| Max Output Channels | 4 (FHD) | 8 (FHD) | 8 (FHD) |
| Video walls per chassis | 1 | 1 | 1 |
| Source Switching | <=20ms | <=20ms | <=20ms |
| Layouts | <=20ms | <=20ms | <=20ms |
| Power Consumption | 150W | 150W | 150W |
| API | RS232/UDP | RS232/UDP | RS232/UDP |
| Color Space | RGB 4:4:4 | RGB 4:4:4 | RGB 4:4:4 |
| Color Depth | 24 | 24 | 24 |
| Operating Temperature | 0°- 50°C (32°-112°F) | 0°- 50°C (32°-112°F) | 0°- 50°C (32°-112°F) |
| Operating Humidity | <90% (Non-condensing) | <90% (Non-condensing) | <90% (Non-condensing) |
J400™
Customizable medium-sized wall processor
- 4K input and output
- 4 video walls in a single chassis
- Warp and blend capability
| Specifications | |
| Form Factor | 4RU |
| Power Consumption | 550W |
| Max Input Slots | 8 |
| Max Input Channels | 32 (HD) or 16 (4K) |
| Max Output Slots | 3 |
| Max Output Channels | 12 (HD or 4K) |
| Redundant PSU | Optional |
| General Technology | |
| Operating System | None |
| Video Wall per chassis | 4 |
| Custom Resolution | Output and Input |
| Color Space | RGB 4:4:4 |
| Bits per color | 8 |
| Source Switching | <=20ms |
| Creating Window | <=16ms |
| Layouts | <=16ms |
| Operating Temperature | 0°- 50°C (32°-112°F) |
| Operating Humidity | <90% (Non-condensing) |
| CPU Board | ||
| Configuration | RJ45 | |
| API | TCP or RS232 | |
| INPUT BOARDS | ||
| HDCP | 1.4 & 2.2 | |
| EDID | Custom EDID management | |
| HD DVI Input Board | 4x channels of SL DVI-I | Up to 1920x1200x60Hz |
| 3GSDI HDMI Input Board | 4x channels of SDI | Up to 1920x1200x60Hz |
| HD HDMI Input Board | 4x channels of HDMI 1.3 | Up to 1920x1200x60Hz |
| UHD30 HDMI Input Board | 2x channels of HDMI 1.4 | Up to 3840x2160x30Hz |
| UHD60 HDMI Input Board | 1x channels of HDMI 1.4 | Up to 3840x2160x60Hz |
| HDBaseT Input Board | 4x channel of HDBT | Up to 1920x1200@60Hz |
| 2 CHANNEL IP DECODING CARD (FOR EACH CHANNEL RJ45 INTERFACE) | ||
| 1 view | Decode up to 1 channel 4000x3000 @25Hz or 3840x2160 @30Hz | Single view, 4K30 output |
| 2x2 view | Decode up to 4x channel 3840x2160 @30Hz | 2x2 view, 4K30 output |
| 3x3 view | Decode up to 9x channel 1920x1080 @30Hz | 3x3 view, 4K30 output |
| 4x4 view | Decode up to 16x channel 1920x1080 @30Hz | 4x4 view, 4K30 output |
| OUTPUT BOARDS | ||
| Display Technology | LCD, LED, Cube, Projectors, Custom Resolutions | |
| HDCP | 1.4 & 2.2 | |
| HD DVI Output Board | 4x channels of SL DVI-I | Up to 1920x1200x60Hz |
| 3GSDI HDMI Output Board | 4x channels of SDI | Up to 1920x1200x60Hz |
| HD HDMI Output Board | 2x channels of HDMI 1.3 | Up to 1920x1200x60Hz |
| UHD30 HDMI Output Board | 4x channels of HDMI 1.4 | Up to 3840x2160x30Hz |
| UHD60 HDMI Output Board | 2x channels of HDMI 2.0 | Up to 3840x2160x60Hz |
| HDbaseT Ouput Board | 4x channel of HDBT | Up to 3840x2160@30Hz (Cat5/6 70m max distance) |
J600™
Customizable medium to large wall processor
- 4 video walls in a single chassis
- Redundant CPU boards and PSU
- 16ms latency
| Specifications | |
| Form Factor | 6RU |
| Power Consumption | 550W |
| Max Input Slots | 14 |
| Max Input Channels | 56 (HD) or 28 (4K) |
| Max Output Slots | 5 |
| Max Output Channels | 20 (HD or 4K) |
| Redundant PSU | Optional |
| General Technology | |
| Operating System | None |
| Video Wall per chassis | 4 |
| Custom Resolution | Output and Input |
| Color Space | RGB 4:4:4 |
| Bits per color | 8 |
| Source Switching | <=20ms |
| Creating Window | <=16ms |
| Layouts | <=16ms |
| Operating Temperature | 0°- 50°C (32°-112°F) |
| Operating Humidity | <90% (Non-condensing) |
| CPU Board | ||
| Configuration | RJ45 | |
| API | TCP or RS232 | |
| INPUTS BOARDS | ||
| HDCP | 1.4 & 2.2 | |
| EDID | Custom EDID management | |
| HD DVI Input Board | 4x channels of SL DVI-I | Up to 1920x1200x60Hz |
| 3GSDI HDMI Input Board | 4x channels of SDI | Up to 1920x1200x60Hz |
| HD HDMI Input Board | 4x channels of HDMI 1.3 | Up to 1920x1200x60Hz |
| UHD30 HDMI Input Board | 2x channels of HDMI 1.4 | Up to 3840x2160x30Hz |
| UHD60 HDMI Input Board | 1x channels of HDMI 1.4 | Up to 3840x2160x60Hz |
| HDBaseT Input Board | 4x channel of HDBT | Up to 1920x1200@60Hz |
| 2 CHANNEL IP DECODING CARD (FOR EACH CHANNEL RJ45 INTERFACE) | ||
| 1 view | Decode up to 1 channel 4000x3000 @25Hz or 3840x2160 @30Hz | Single view, 4K30 output |
| 2x2 view | Decode up to 4x channel 3840x2160 @30Hz | 2x2 view, 4K30 output |
| 3x3 view | Decode up to 9x channel 1920x1080 @30Hz | 3x3 view, 4K30 output |
| 4x4 view | Decode up to 16x channel 1920x1080 @30Hz | 4x4 view, 4K30 output |
| OUTPUT BOARDS | ||
| Display Technology | LCD, LED, Cube, Projectors, Custom Resolutions | |
| HDCP | 1.4 & 2.2 | |
| HD DVI Output Board | 4x channels of SL DVI-I | Up to 1920x1200x60Hz |
| 3GSDI HDMI Output Board | 4x channels of SDI | Up to 1920x1200x60Hz |
| HD HDMI Output Board | 2x channels of HDMI 1.3 | Up to 1920x1200x60Hz |
| UHD30 HDMI Output Board | 4x channels of HDMI 1.4 | Up to 3840x2160x30Hz |
| UHD60 HDMI Output Board | 2x channels of HDMI 2.0 | Up to 3840x2160x60Hz |
| HDbaseT Ouput Board | 4x channel of HDBT | Up to 3840x2160@30Hz (Cat5/6 70m max distance) |
J-Series Processors
| J144 | J148 | J188 | J400 | J600 | |
|---|---|---|---|---|---|
| HD Outputs | 4 | 8 | 8 | 12 | 20 |
| 4K30 Outputs | 12 | 20 | |||
| 4K60 Outputs | 6 | 10 | |||
| HD Inputs | 4 | 4 | 8 | 32 | 56 |
| 4K Inputs | 16 | 28 | |||
| Multi-Wall System | • | • | |||
| Redundant PSU | • | • | |||
| Hot Swappable Boards | • | • | |||
| Warp/Blend Boards | • | • | |||
| Audio Cards | • | • | |||
| IP Decoding Boards | • | • | |||
| HDBaseT Inputs & Outputs | • | • | |||
| OSD text overlay | • | • |
LightSpeed Technology
Jupiter’s latest technology for video processing is LightSpeed and it features ultra-fast capture, transfer, display, scaling and cropping of inputs. LightSpeed technology enables source-to-display frame transfer in less than 16ms, which is the fastest in the industry. Each display supports up to 4 windows of any source type, resolution or frame rate. This new technology also allows for 100% uptime while upgrading firmware, hot swapping or adding individual boards for 24/7 reliability. The Status Monitoring dashboard provides a real-time look into the hardware, making it easy to swap out any components for service or upgrades.
Powerful Yet Simple
Simply rename all the sources, configure the geometry of the video wall to match the displays and the system is done with the configuration. The web based configuration and management tool makes set up a snap.
All J-Series products are HDCP-compatible, 24/7 display wall processors. Each model can power up to 4 different video walls with a single chassis, each wall having a unique geometry and resolution. Any type of source can be connected to create a beautiful and intelligent video wall. No operating system layer eliminates the worry of any virus, updates or software compatibility issues. The open API platorm allows for 3rd party control to touch panels and other management systems.
