Catalyst™
Typically installed in these Markets:

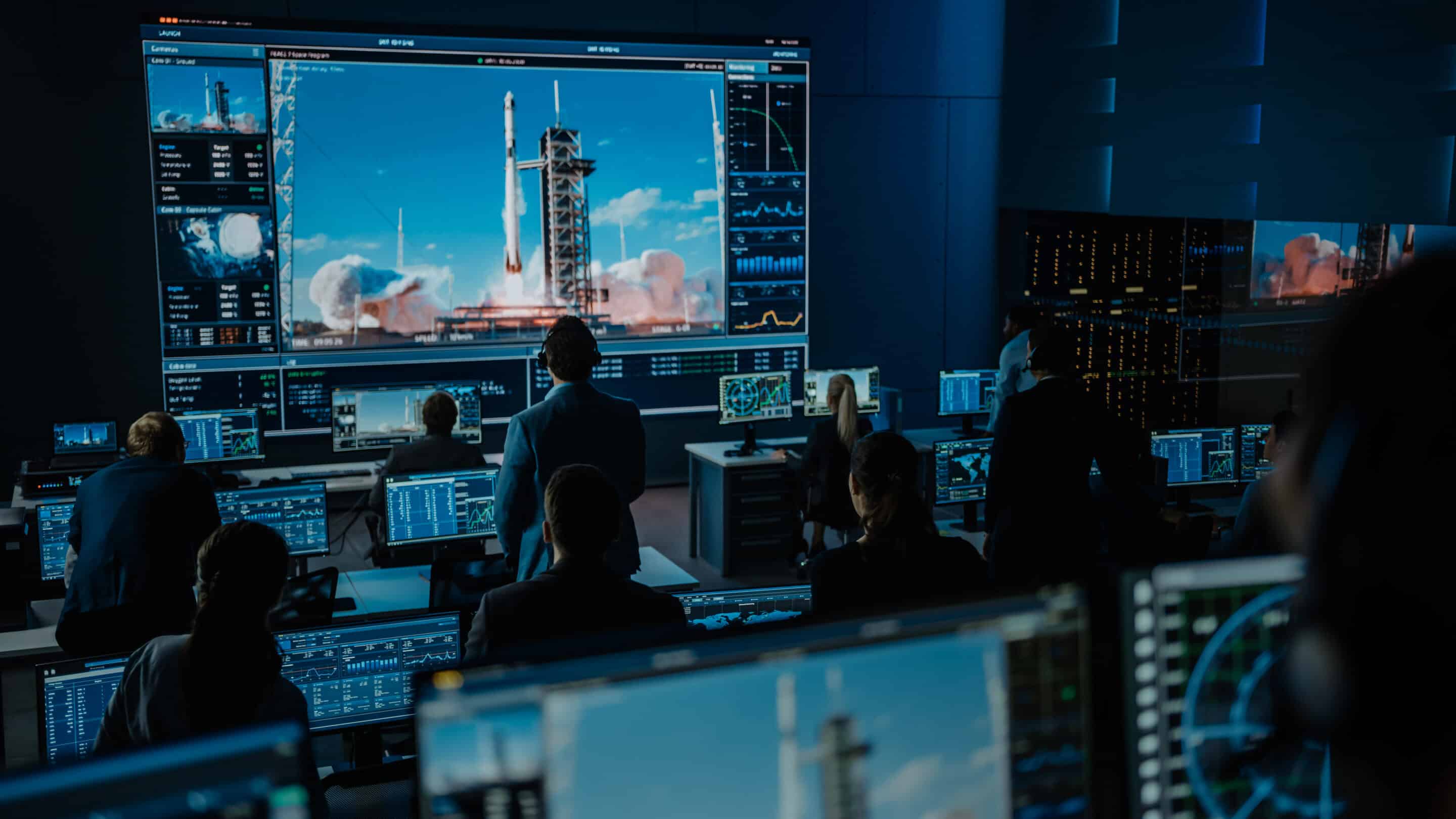

- Operational Control Rooms
- Military & Government Command Centers
- Security and Surveillance
- Utility & Energy
Typically installed in these Markets:
- Operational Control Rooms
- Military & Government Command Centers
- Security and Surveillance
- Utility & Energy
Catalyst Processors
Windows 10 processor supporting massive video walls at the highest resolution on the market.
- Windows 10 Operating System
- Up to 156 4K inputs
- Up to 1500+ IP streams
- Web/VNC/Application support
More 4K IP and direct inputs, more memory, and more power for unparalleled bandwidth speed
Supports up to 156 4K direct inputs
Decode up to 1,500+ H.264 streams

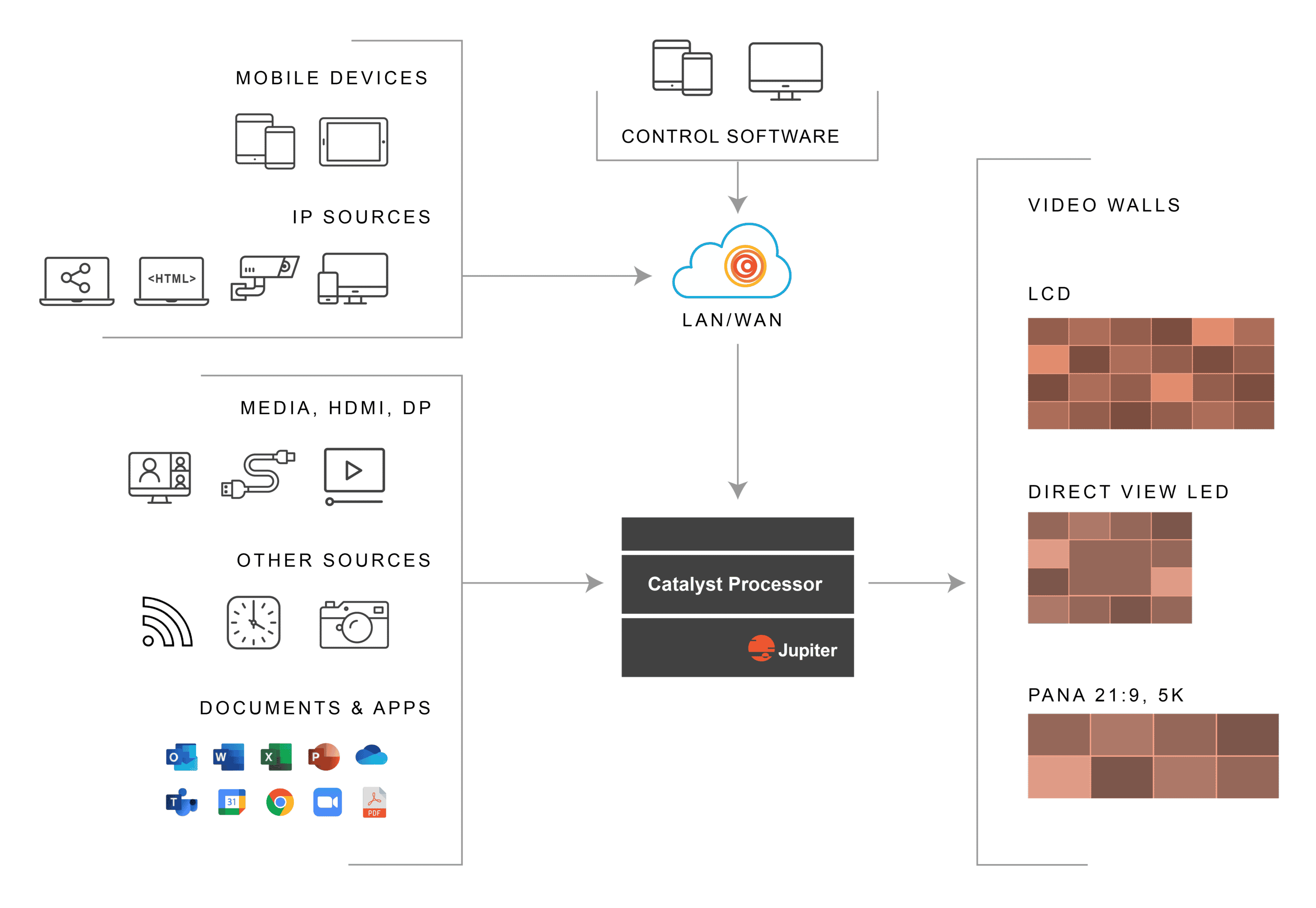

Architecture of a Catalyst Installation

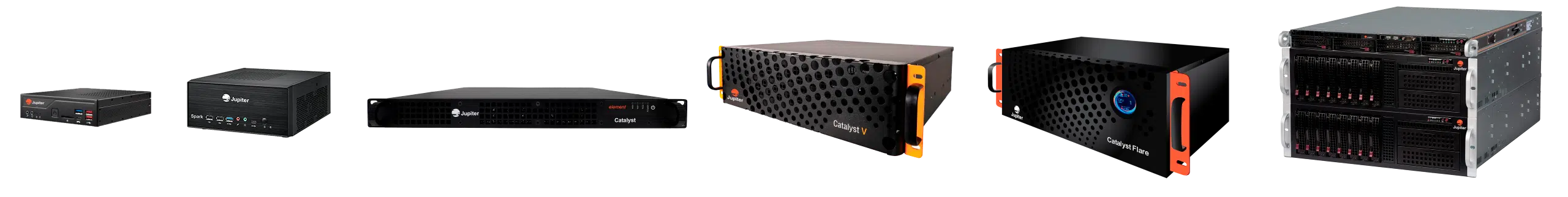

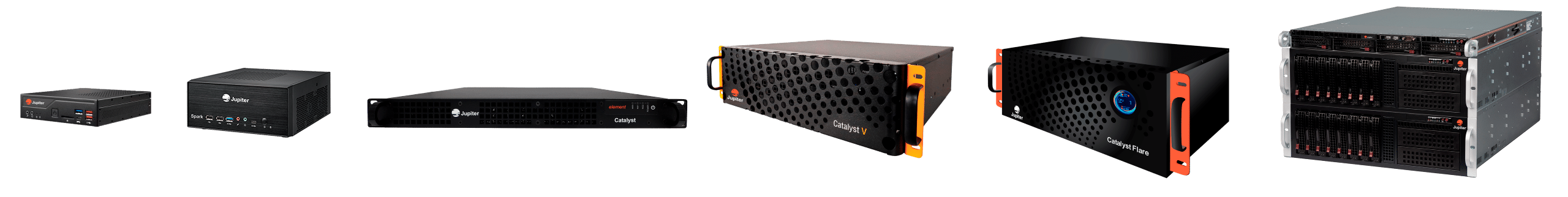

Catalyst processor range

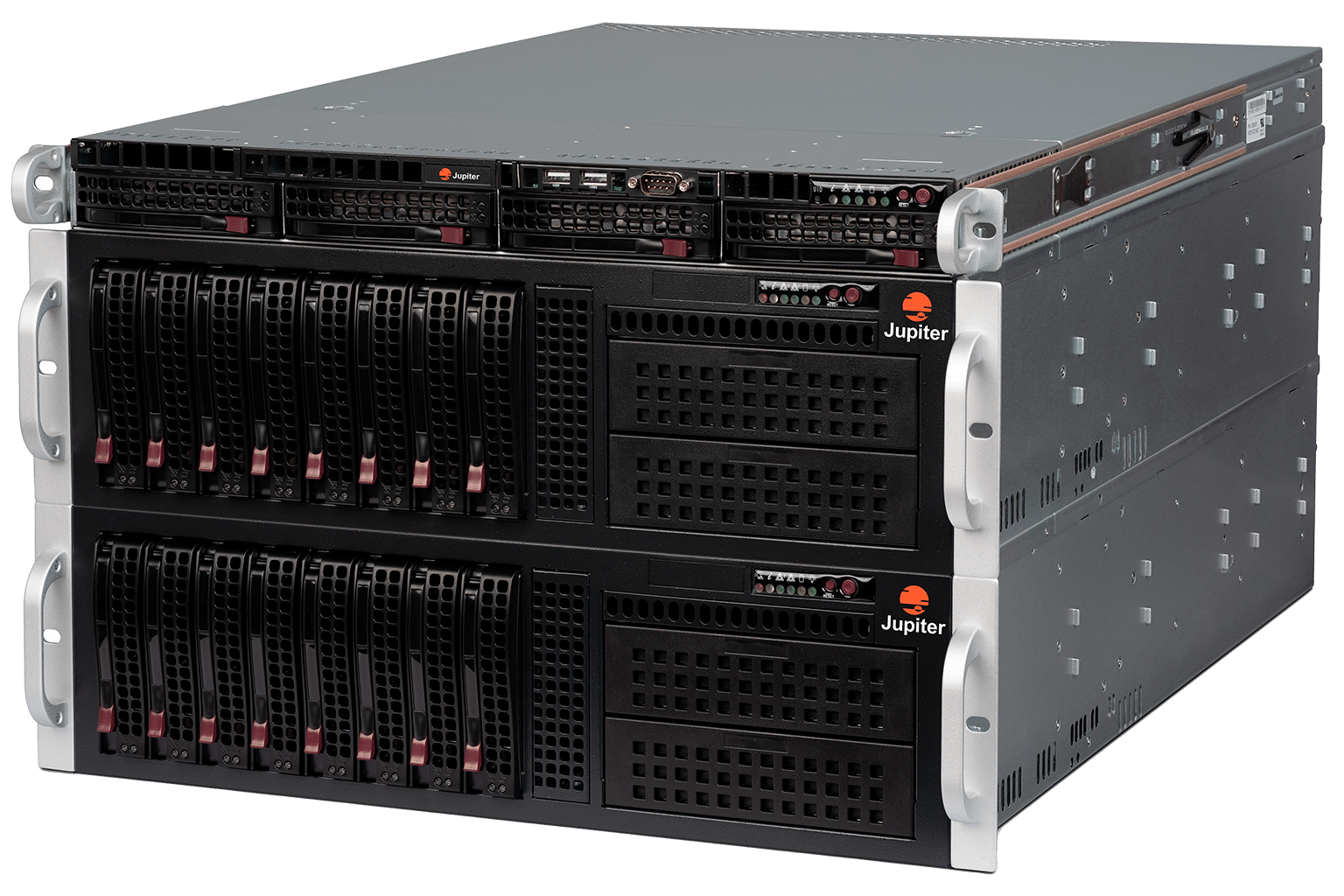

Catalyst XL
Workhorse and flagship processor
- Designed for mission critical solutions
- Massive amount of inputs
- Xeon processor options with up to 16 cores
| OUTPUTS | |
| 4 Channel Graphics Board | 4x DisplayPort 1.4 or 4x HDMI (full-size) Up to 3x 5120x3200 @60Hz (DP) or 4x 4096x2160 @60Hz (HDMI) |
| DIRECT INPUTS | |
| 4 Channel HDMI Capture Board | 4x 4096x2160 @60Hz(4:2:0) / 4096x2160 @30Hz / 3840x2160 @60Hz (4:2:0) / 3840x2160 @30Hz / 2560x1600 @60Hz |
| 2 Channel DP Capture Board | 2x 4096x2160 @60Hz / 4096x2160 @30Hz / 3840x2160 @60Hz / 3840x2160 @30Hz / 2560x1600 @60Hz |

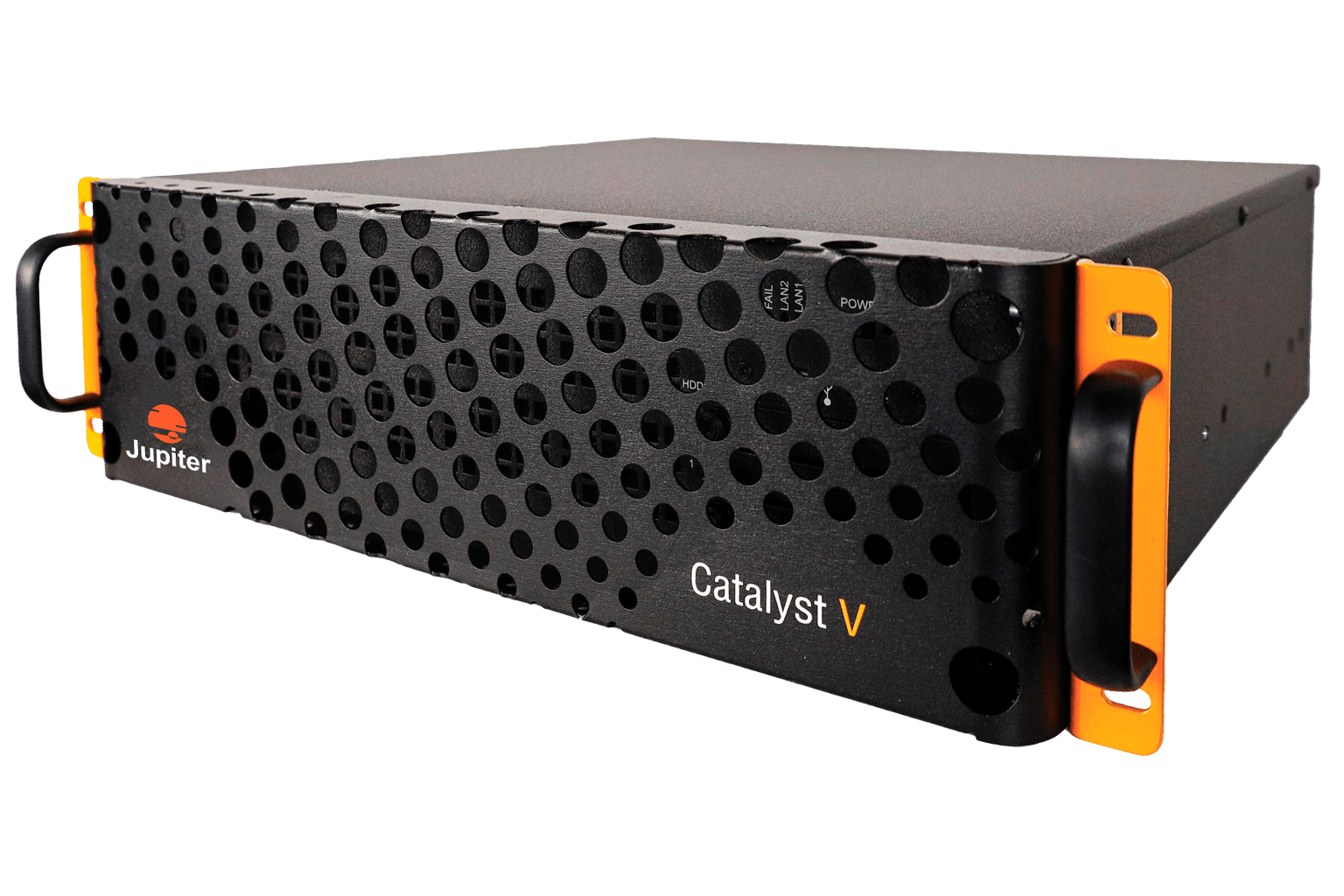

Catalyst V
Medium to large room optimized
- Designed for small to medium sized configurations
- Powerful i9 processor
- Ultra-quiet
| OUTPUTS | |
| 4 Channel Graphics Board | 4x DisplayPort 1.4 or 4x HDMI (full-size) Up to 3x 5120x3200 @60Hz (DP) or 4x 4096x2160 @60Hz (HDMI) |
| DIRECT INPUTS | |
| 4 Channel HDMI Capture Board | 4x 4096x2160 @60Hz(4:2:0) / 4096x2160 @30Hz / 3840x2160 @60Hz (4:2:0) / 3840x2160 @30Hz / 2560x1600 @60Hz |
| 2 Channel DP Capture Board | 2x 4096x2160 @60Hz / 4096x2160 @30Hz / 3840x2160 @60Hz / 3840x2160 @30Hz / 2560x1600 @60Hz |

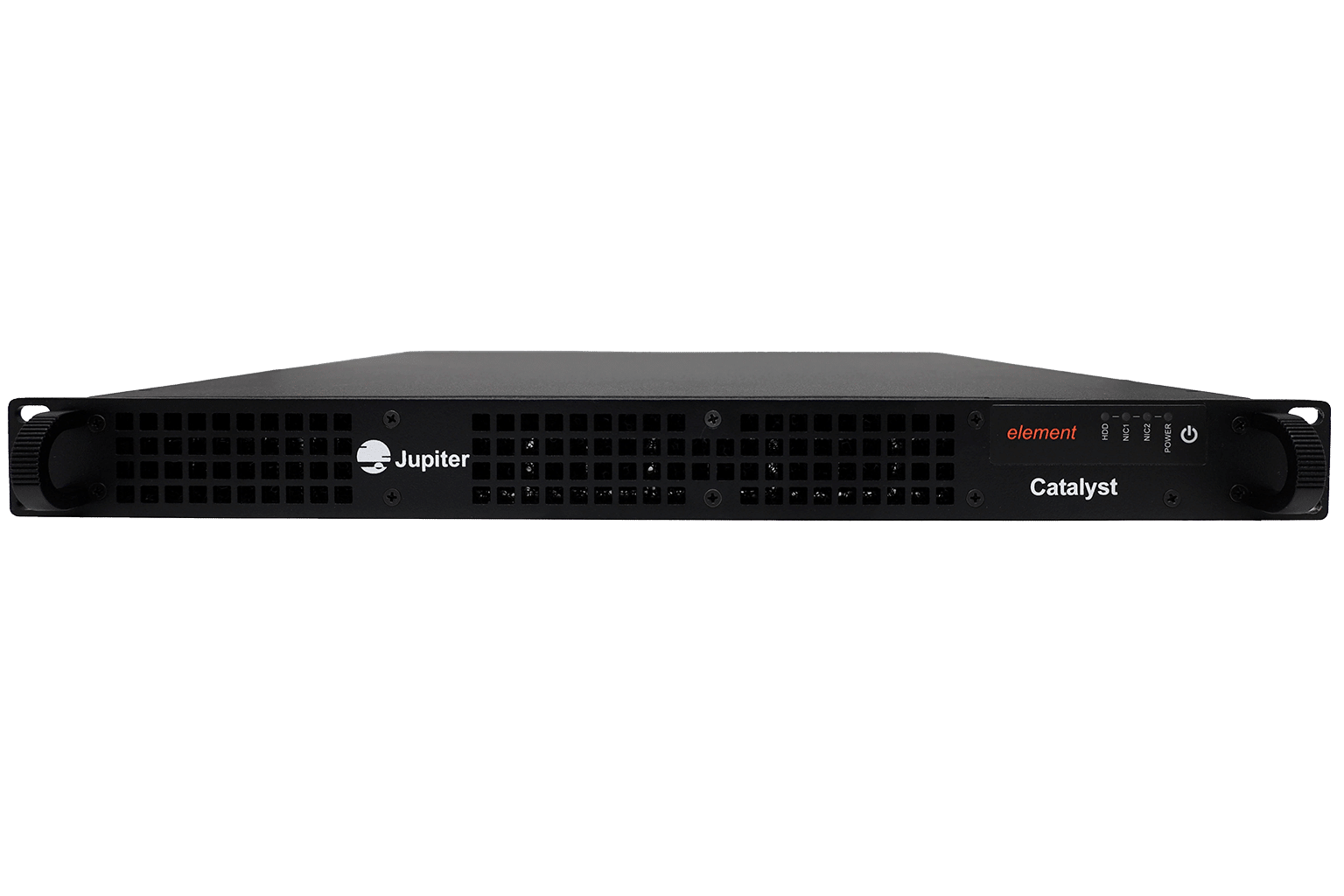

Catalyst Element
Small to medium size room optimized
- Compact 1U rackable format
- Powerful Xeon processors
- Up to 8 Channel Graphic Outputs
| OUTPUTS | |
| 8 Channel Graphics Outputs | 8x DisplayPort 1.4 or 8x HDMI (full-size) Up to 8x 5120x3200 @60Hz (DP) or 8x 4096x2160 @60Hz (HDMI) per GPU |
| DIRECT INPUTS | |
| 4 Channel HDMI Capture Board | 4x 4096x2160 @60Hz(4:2:0) / 4096x2160 @30Hz / 3840x2160 @60Hz (4:2:0) / 3840x2160 @30Hz / 2560x1600 @60Hz |
| 2 Channel DP Capture Board | 2x 4096x2160 @60Hz / 4096x2160 @30Hz / 3840x2160 @60Hz / 3840x2160 @30Hz / 2560x1600 @60Hz |
| 4 Channel SDI Capture Board | 12G-SDI on connectors 2 & 4 3G-SDI, HD-SDI, SD SDI on all connectors |
| Hardware Decoding Board | 2x 3840x2160 @60Hz, 4x 3840x2160 @30Hz, 8x 1920x1080 @60Hz, 16x 1920x1080 @30Hz, 30+ SD Streams |
| Software Decoding (per system) | 1x 3840x2160 @60Hz, 3x 3840x2160 @30Hz, 6x 1920x1080 @60Hz, 12x 1920x1080 @30Hz, 30+ SD Streams |

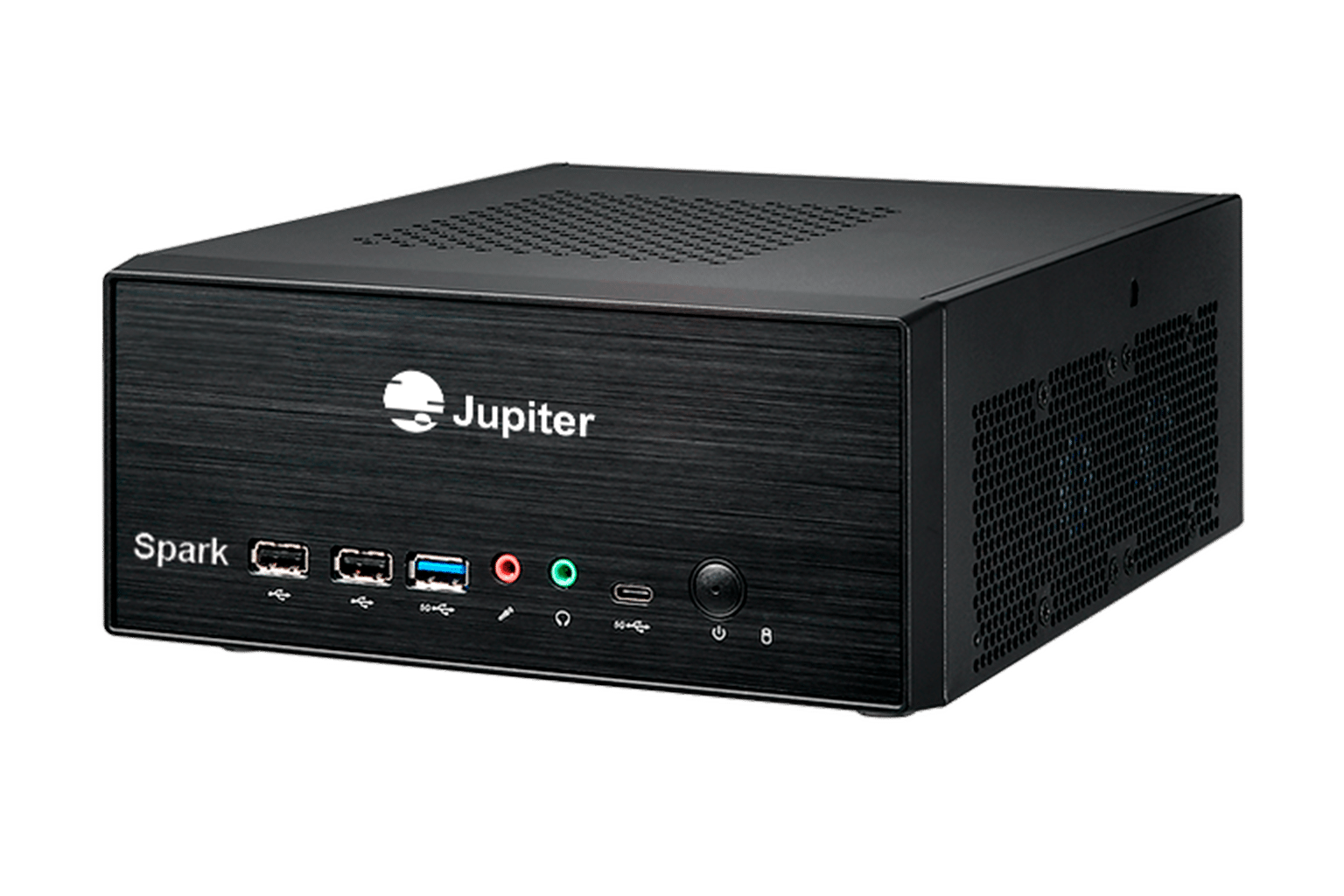

CRS-5K
For every conference and huddle room
- Certified for PANA 5K 21:9
- Designed for small video walls or ancillary displays
- IP or direct inputs
| HARDWARE | |
| CPU | Supports 10th/11th Generation Intel® Core™ Series |
| RAM | 2 x DDR4 SO-DIMM slots, 32GB per DIMM (Max 64GB) DDR4 2666/2933/3200 MHz |
| SOFTWARE | |
| OS | Windows 10 |
| Management Software | Canvas |
| Encryption | SSL/TLS |
Catalyst Processors Specs
| CRS-5K | Element | Catalyst V | Catalyst XL | |
|---|---|---|---|---|
| PCIe slots | 0 | 3 | 5 | 10-40 |
| HD Outputs | 4 | 8 | 64 | 64 |
| 4K60 Outputs | 4 | 8 | 16 | 16 |
| 5K Outputs | 3 | 6 | 12 | 12 |
| HD Inputs | 3 | 4 | 16 | 156 |
| 4K Inputs | 3 | 4 | 16 | 156 |
| IP Decoding | 12 | 12 | 100+ | 1500+ |
| VNC | 12 | 32 | 32+ | 32+ |
| Web/HTML | 12 | 16 | 32+ | 32+ |
| Video Files | 12 | 12 | 12 | 12+ |
| Redundant PSU | • | • | ||
| Canvas Enabled | • | • | • | • |
Advanced Capture Technology
Catalyst XL utilizes the latest PCIe technology to capture and display video sources with resolutions up to 8K. Ultra-fast bandwidth on each board increases the density of processing power, reducing the number of input/output boards and the overall hardware footprint. Catalyst XL offers IP, HDMI, SDI and DP capture board options. State of the art hardware and software is capable of ingesting resolutions up to 8K60, custom resolutions, 8/10 bit, HDCP content and RGB 4:4:4 color subsampling. Each port can function autonomously with the ability to transfer or scale to accommodate any type of solution in two different ways: Canvas Standalone and Enterprise.
Windows 10
Catalyst is built on Windows 10, a specialized version of Windows 10 that offers the best of a Windows environment, including comprehensive security, while eliminating challenges associated with automatic updates. Windows 10 and Canvas continue to support Workgroup or Domain configurations to ensure flexible deployments—whether they are standalone video walls or connected to the corporate network.
Purpose Built Hardware
For over 40 years, Jupiter has been designing and manufacturing display wall processors, leveraging cutting edge technology to create hardware for the most demanding display wall installations. Next generation DMA technology, called DirectGMA, enables high speed data transfer from the capture board to one or more GPU boards. The GPU board is specifically designed to drive an arbitrary number of displays while maintaining frame synchronization across multiple boards for bigger, more complex configurations.
Canvas Enabled
Jupiter’s powerful, collaborative wall management software is web based and enables users to intuitively drag and drop inputs and control sources whether they’re inside or outside of the control room. Canvas supports both Active Directory and Workgroup environments for user authentication so the platform is secure and robust allowing any number of users permission based access.
Expand Your Internal Team
Skip the Investment
Canvas doesn’t require an elaborate installation of processor hardware or an enormous wall of monitors to get this multi-window collaboration tool. All it takes is a Canvas software license and you’re good to go.
Additional Licenses
Add other internal stakeholders and departments for cross pollenation and alternate perspectives. Simply increase the number of Canvas licenses and your collaboration increases.
Secure Accessibility
Canvas works anywhere in the world you work and on any device. You’re granted identical access to view and edit the content whether you’re inside or outside the office.
